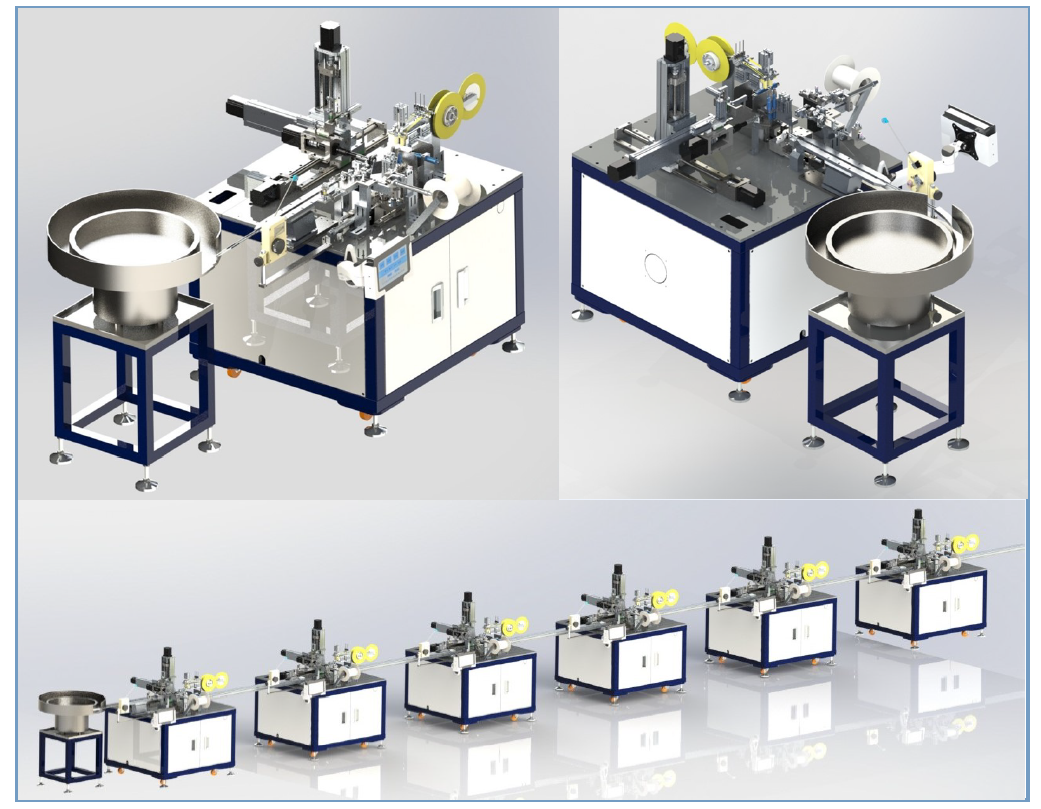

LD-S6001LA
Automatic Single-spindle Casing Tapping Winding Machine




Specification:
Spindle Number:
1
Maximum winding Rotating diameter:
60mm
Spindle Speed:
4000rpm
Wire Size:
0.03~1.0mm; multi-strand wire 0.1*180 strands or less
Maximum length of casing:
5mm-50mm(non-standard 10mm-60mm)
Three-dimensional motion route:
X:400mm Y:200mm Z:120mm
Spindle servo motor power:
400W
Control system:
12-axis programmable motion control system
Loading and unloading methods:
Vibrating plate loading, online loading, manual row loading; automatic unloading;
Operation mode:
single machine / multiple connected machines
Power Supply:
AC 220V±10% 50HZ
Total power:
2500W
Required Air Pressure:
0.4~0.6mpa
Single machine size:
L800 x W650 x H1350 mm
Single machine weight:
300Kgs

Reference: Single winding coil loading and unloading + casing + winding + tapping,
the average completion time is controlled within 14~23 seconds (actually depends on the product)
