LD-TDW16001A

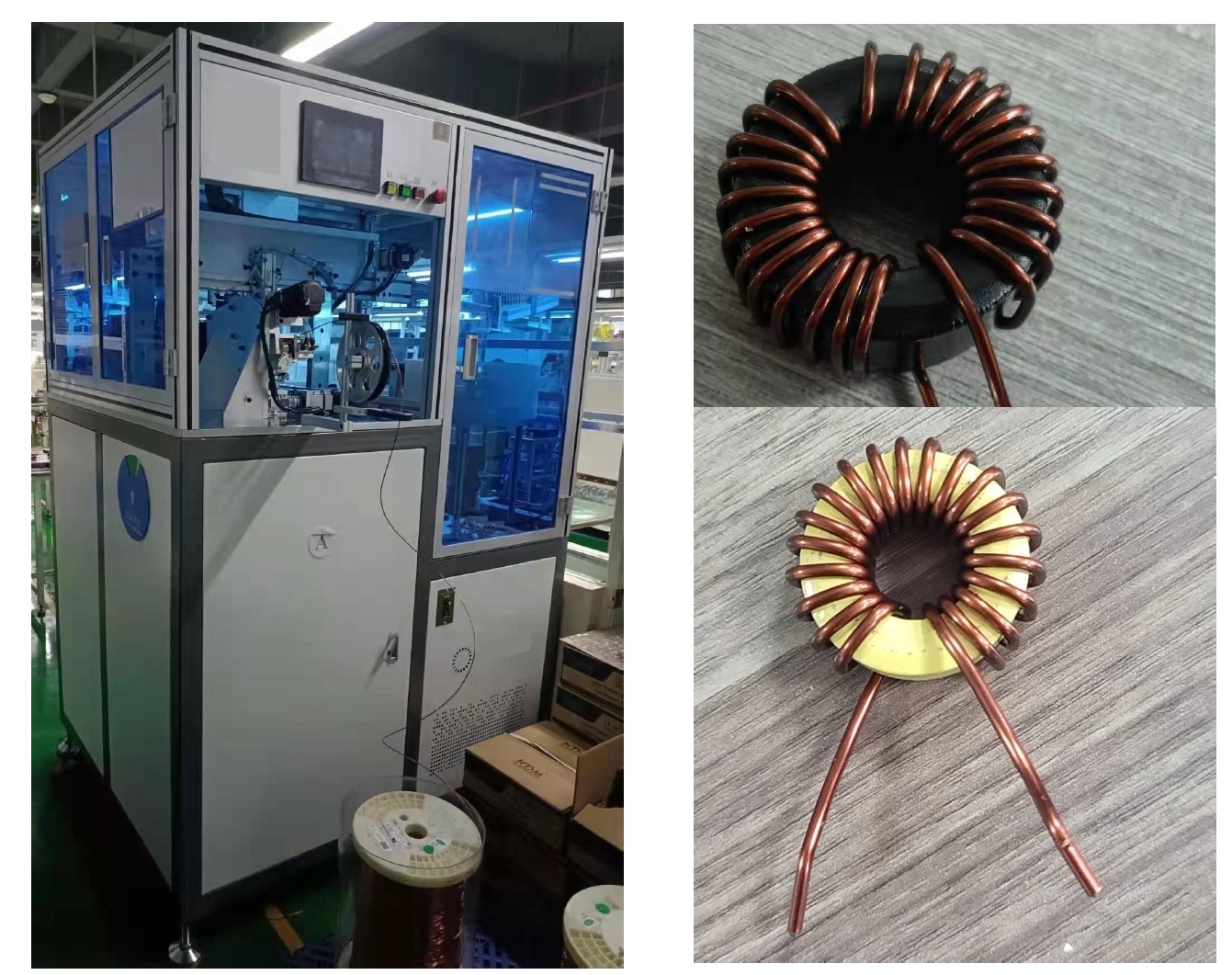

Fully Automatic Single-Spindle Toroidal Differential Mode Inductor Winding Machine




Specification:
Synchronous work：
1 group
Motion control system axis number：
10axis
Wheelbase：
160mm
Applicable magnetic ring outer diameter：
14~50mm
The smallest magnetic ring completes the inner
diameter：
8mm(the finished inner diameter is not less than
the hook needle)
Applicable wire diameter range：
0.5~2.0mm
Maximum hook wire length：
1.5M
Rated power：
3000W
Power consumption：
600W
Power supply：
AC 220±10V 50/60 Hz
Air source：
0.4~0.7MPa
Dimensions：
1250(L)X1040(W)X1950(H)mm
Net Weight：
300kgs
