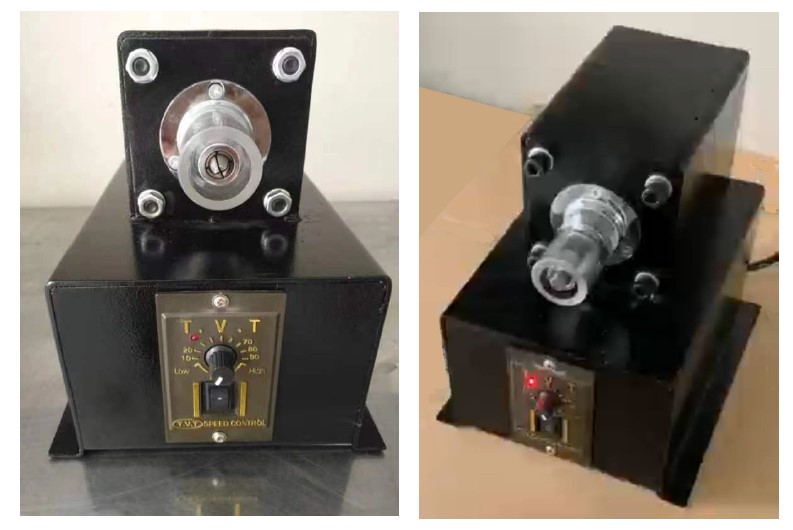

LD-905L
High torque / high speed copper wire paint Peeling Machine





Specification:
Motor power:
DC Brushless Motor 120W
Maximum speed:
3200RPM(adjustable speed)
Paint peeling knife specifications and wire diameter range:
00# ψ0.28~0.50mm
01# ψ0.51~0.90mm
02# ψ0.90~1.30mm
03# ψ1.30~1.60mm
04# ψ1.60~1.90mm
05# ψ1.90~2.30mm
06# ψ2.30~2.60mm
07# ψ2.60~3.00mm
08# ψ3.00~3.35mm
09# ψ3.35~3.60mm
10# ψ3.60~4.00mm
11# ψ4.00~4.50mm
12# ψ4.50~5.00mm
13# ψ5.00~5.50mm
14# ψ5.50~6.00mm
15# ψ6.00~6.50mm
Power supply:
AC 220V 50/60Hz
Machine net weight:
7.0kg
Machine size:
L220*W200*H220mm
