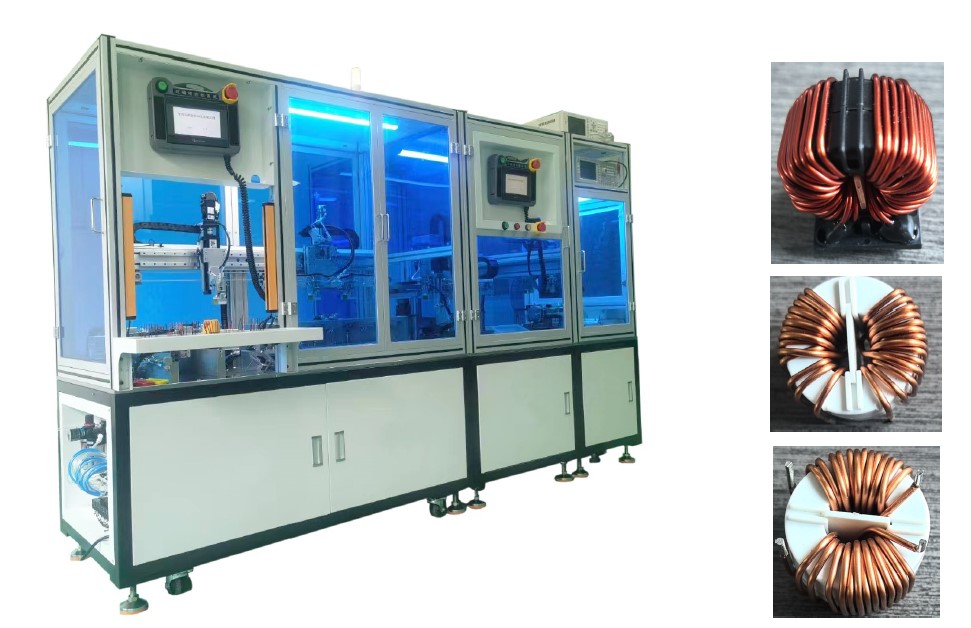

LD-ACP16004B
Core wire cutting - peeled - soldering - testing - installation baseplate - unloading automatic assembly line




Specification:
Peeling spindle spacing:
160mm
Number of spindles:
4spindles
Spindle speed:
5000rpm（Max）
Spindle servo motor power:
400W
Applicable wire diameter:
0.7-1.2mm（Other specifications：1.8-2.5mm）
Maximum core outer diameter：
85mm
Number of soldering products：
4/6 pcs
Soldering three-dimensional route:
X Rotation：180 degrees Y：500mm Z：100mm
Soldering power:
1600W
Voltage:
AC 220V±10%
Total power:
10KW
Power consumption:
About 600W
Compressed air:
0.4-0.6mpa
Whole line size:
5500mm*1500mm*1900mm
Whole line weight:
About 1500kg


Optional automatic functions such as laser peeling/core dispensing/partition installation/plate placement...
automated production lines can be customized according to customer requirements.
