LD-LAE201
Automatic loading withstand-voltage testing and plating all-in-one machine

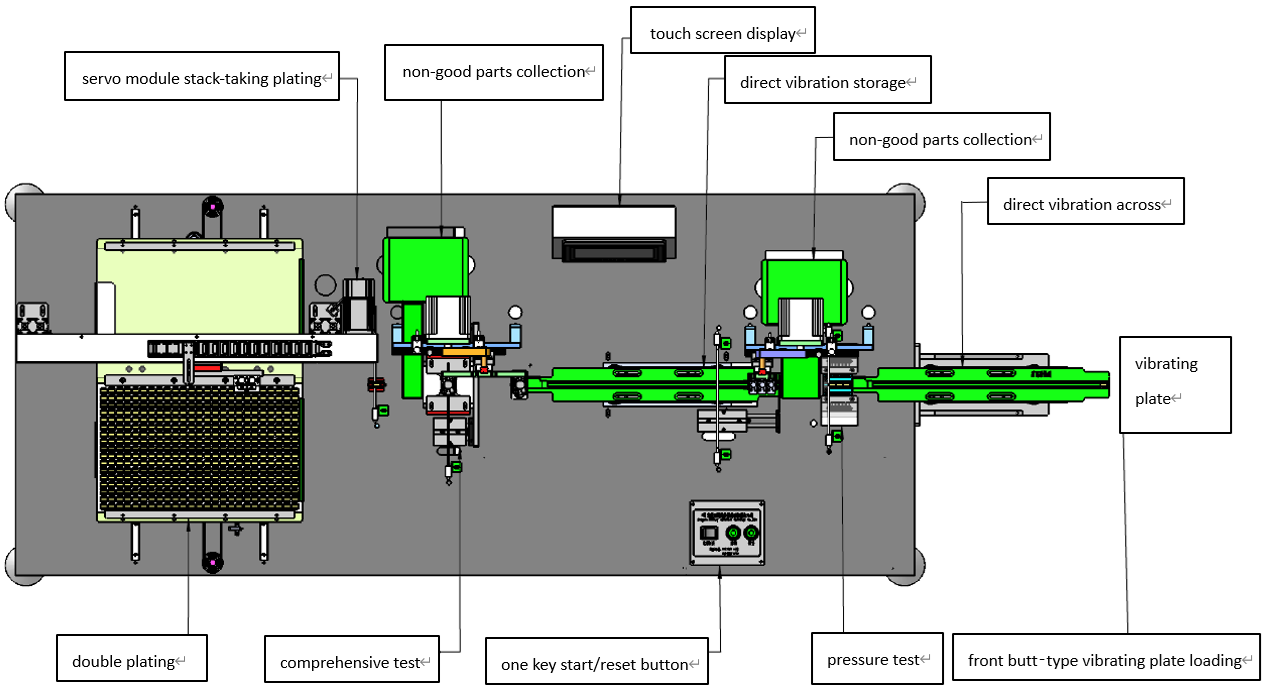

Machine station diagram:



Operation process:
Vibration plate loading>Withstand voltage test/Comprehensive test> Double platin

Equipment Specification:
Loading/unloading method
Automatic loading and unloading plating
Test instrument
Customer-supplied (equipment provides standard connectors)
Applicable Bobbin Type
EI、EE、EF、EPC、ER、RM、PQ、UU
Size range
10~35mm(The corresponding fixture needs to be replaced when switching products)
Average production efficiency
1500pcs/hour.
Total power used
700W
Power supply
220V 50HZ
Gas source
0.6~0.8Mpa
Machine size
L1800*W750*H1400mm
Machine weight
About 220KG


Applicability: Products of different sizes can share the machine by changing the fixture.
