LD-LATE01
Automatic assembly, tapping, testing and plating all-in-one machine

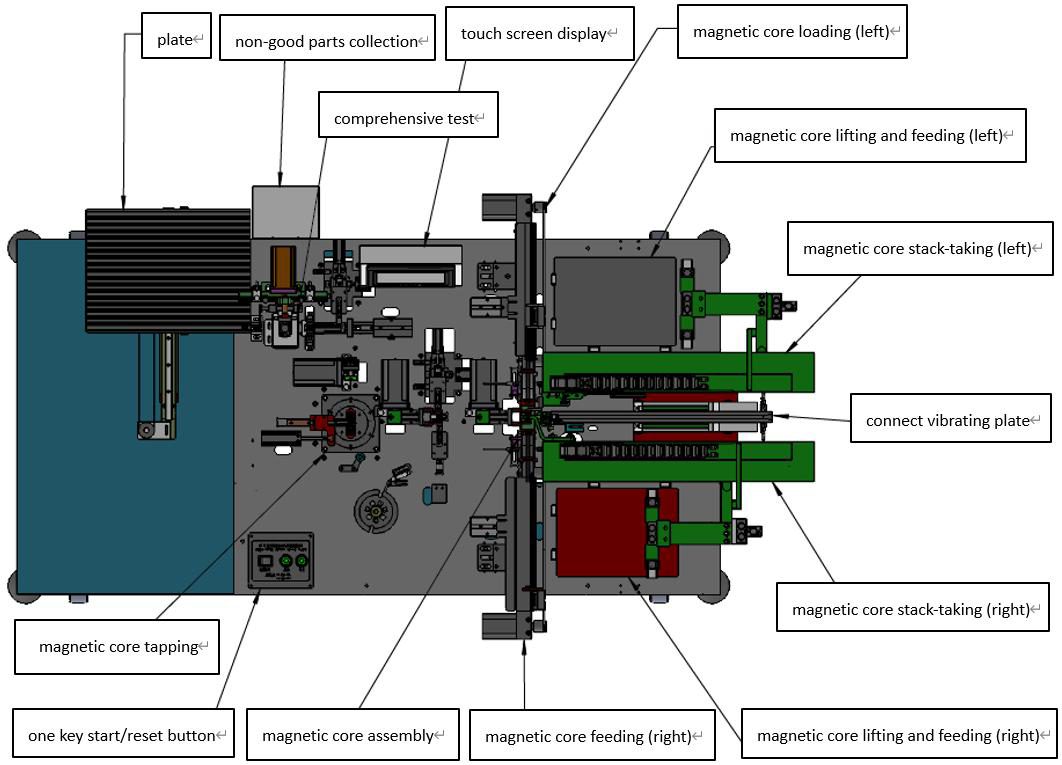

Machine station diagram:



Operation process:
Adsorption assembly> Magnetic core tapping> Testing>Plating

Equipment Specification:
Loading/unloading method
Automatic assembly loading and unloading plating
Test instrument
Customer-supplied (equipment provides standard connectors)
Applicable Bobbin Type
EI、EE、EF、EPC、ER、RM、PQ、UU
Size range
10~30mm(special machine)
Average production efficiency
1500~1800pcs/hour.
Total power used
1000W
Power supply
220V 50HZ
Gas source
0.6~0.8Mpa
Machine size
L2000*W800*H1400mm
Machine weight
About 350KG


Applicability: Products of different sizes can share the machine by changing the fixture.
