LD-LHTE01
Manual assembly, loading, tapping, testing, and plating all-in-one machine

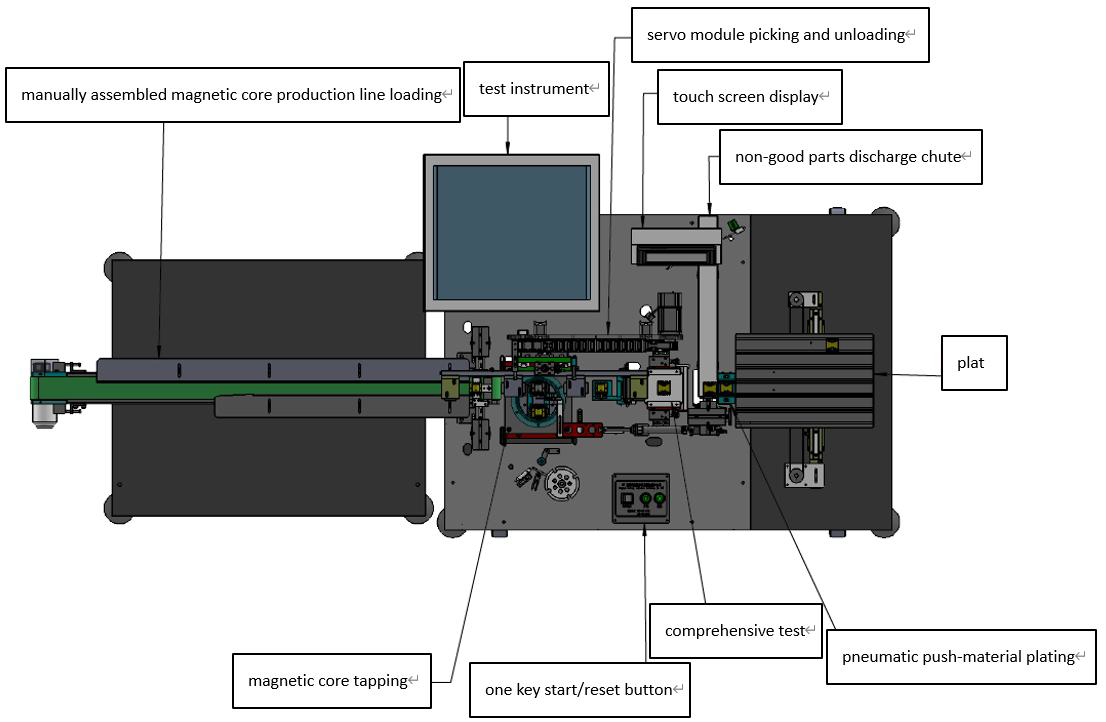

Machine station diagram:



Operation process:
Manual assembly loading>tapping>testing>plating

Equipment Specification:
Loading/unloading method
Manual loading plating, Automatic unloading plating
Test instrument
Customer-supplied (equipment provides standard connectors)
Applicable Bobbin Type
EI、EE、EF、EPC、ER、RM、PQ、UU
Size range
10~35mm(The corresponding fixture needs to be replaced when switching products)
Average production efficiency
1200pcs/hour.
Total power used
600W
Power supply
220V 50HZ
Gas source
0.6~0.8Mpa
Machine size
L2200*W1000*H1300mm
Machine weight
About 200KG


Applicability: Products of different sizes can share the machine by changing the fixture.
